产品展示 |
 |
|
|
|
|
| |
| 产品说明: |

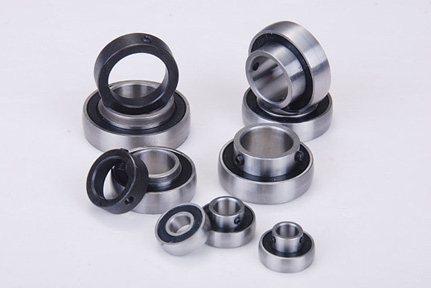

| Bearing |
Dimensions (mm) |
Dynamic load |
Static load |
weight |
| NO. |
rarings |
ratings |
|
| d |
D |
B |
C |
S |
B1 |
d3 |
B5 |
G |
ds |
(KN) |
(KN) |
(kg) |
| U000 |
10 |
26 |
11 |
8 |
4 |
17.5 |
17 |
8.5 |
3.5 |
M4×0.7 |
4.6 |
1.8 |
0.03 |
| U001 |
12 |
28 |
11 |
8 |
4 |
17.5 |
19 |
8.5 |
3.5 |
M4×0.7 |
5.1 |
2.2 |
0.04 |
| U002 |
15 |
32 |
12 |
9 |
4.5 |
18.5 |
22 |
8.5 |
3.5 |
M4×0.7 |
5.6 |
2.8 |
0.05 |
| U003 |
17 |
35 |
13.5 |
10 |
5 |
20.5 |
25 |
9.5 |
3.5 |
M4×0.7 |
6 |
3.2 |
0.06 |
| U004 |
20 |
42 |
16.5 |
12 |
6 |
24.5 |
30 |
11 |
5 |
M5×0.8 |
9.35 |
4.8 |
0.1 |
| U005 |
25 |
47 |
17.5 |
12 |
6 |
25.5 |
36 |
12 |
5 |
M5×0.8 |
10.1 |
5.6 |
0.14 |
| U006 |
30 |
55 |
18.5 |
13 |
6.5 |
26.5 |
42 |
12 |
5 |
M5×0.8 |
13.2 |
8 |
0.14 |
| U007 |
35 |
62 |
20 |
14 |
7 |
29.5 |
48 |
13.5 |
5 |
M6×0.75 |
15.9 |
10.1 |
0.25 |
| Bearing |
Dimensions (mm) |
Dynamic load |
Static load |
weight |
| NO. |
rarings |
ratings |
|
| d |
D |
B |
C |
S |
G |
ds |
(KN) |
(KN) |
(kg) |
| K000 |
10 |
26 |
14 |
8 |
4 |
3 |
M3*0.35 |
4.6 |
2 |
0.02 |
| K001 |
12 |
28 |
14.5 |
8 |
4 |
3 |
M3*0.35 |
5.1 |
2.4 |
0.03 |
| K002 |
15 |
32 |
16.5 |
9 |
4.5 |
3.5 |
M4×0.5 |
5.6 |
2.8 |
0.04 |
| K003 |
17 |
35 |
17.5 |
10 |
5 |
3.5 |
M4×0.5 |
6 |
3.3 |
0.05 |
| K004 |
20 |
42 |
21 |
12 |
6 |
4 |
M5×0.5 |
9.35 |
5.1 |
0.09 |
| K005 |
25 |
47 |
22.5 |
12 |
6 |
4.5 |
M5×0.5 |
10.1 |
5.8 |
0.1 |
| K006 |
30 |
55 |
24.6 |
13 |
6.5 |
5 |
M5×0.5 |
13.2 |
8.2 |
0.15 |
| K007 |
35 |
62 |
26.5 |
14 |
7 |
5 |
M6×0.75 |
15.9 |
10.2 |
| |
|
|
|
|
