Products |
 |
|
|
|
|
| |

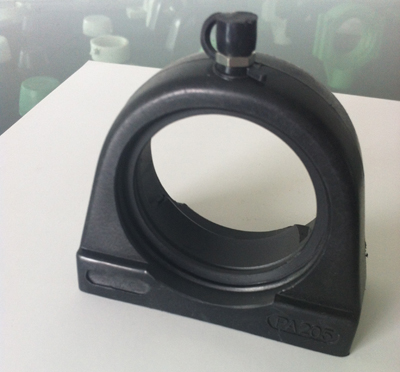

| Thermoplastic Tapped Base Units |

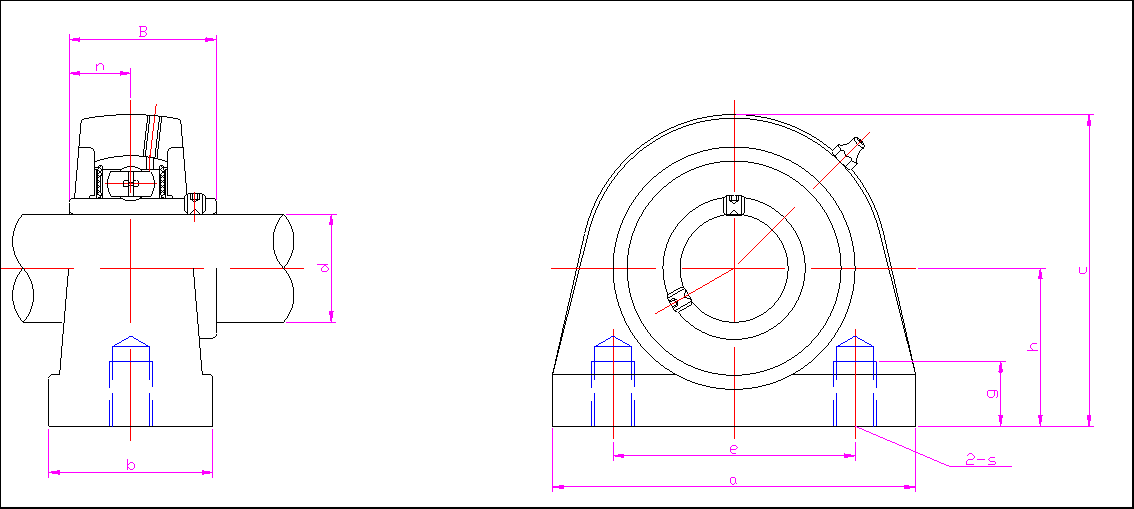

| TYPE |
d(mm) |
a |
e |
h |
b |
s |
c |
B |
n |
g |
| PA204 |
20 |
76 |
52 |
33.3 |
38 |
M8 |
64 |
31 |
12.7 |
13 |
| PA205 |
25 |
84 |
56 |
36.5 |
38 |
M10 |
72 |
34.1 |
14.3 |
13 |
| PA206 |
30 |
94 |
66 |
42.9 |
48 |
M10 |
84 |
38.1 |
15.9 |
16 |
| PA207 |
35 |
110 |
80 |
47.6 |
48 |
M10 |
95 |
49.2 |
17.5 |
18 |
| PA208 |
40 |
116 |
84 |
49.2 |
48 |
M12 |
100 |
49.2 |
19 |
20 |
| PA209 |
45 |
120 |
90 |
54.2 |
54 |
M12 |
108 |
49.2 |
19 |
20 |
| PA210 |
50 |
130 |
94 |
57.2 |
54 |
M16 |
116 |
51.6 |
19 |
22 |
| TB204 |
20 |
72.8 |
50.8 |
33.3 |
34.5 |
3/8-16 |
66 |
31 |
12.7 |
13 |
| TB205 |
25 |
76.2 |
50.8 |
36.5 |
39.5 |
3/8-16 |
73.5 |
34.1 |
14.3 |
13 |
| TB206 |
30 |
101 |
76.2 |
42.9 |
42.5 |
7/16-14 |
84 |
38.1 |
15.9 |
16 |
| TB207 |
35 |
110 |
82.6 |
47.6 |
47.5 |
1/2-13 |
95 |
49.2 |
17.5 |
18 |
| TB208 |
40 |
120 |
88.9 |
49.2 |
48 |
1/2-13 |
100.5 |
49.2 |
19 |
20 |
| TB209 |
45 |
124 |
95.3 |
54.2 |
50 |
1/2-13 |
108.5 |
49.2 |
19 |
20 |
| TB210 |
50 |
135 |
101.6 |
57.2 |
54 |
5/8-11 |
115 |
51.6 |
19 |
22 | |
|
|
|
|
