Products

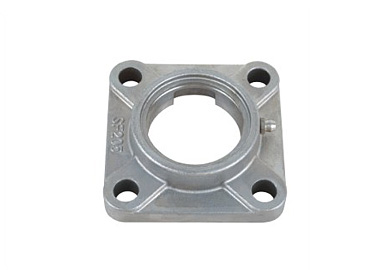

SF

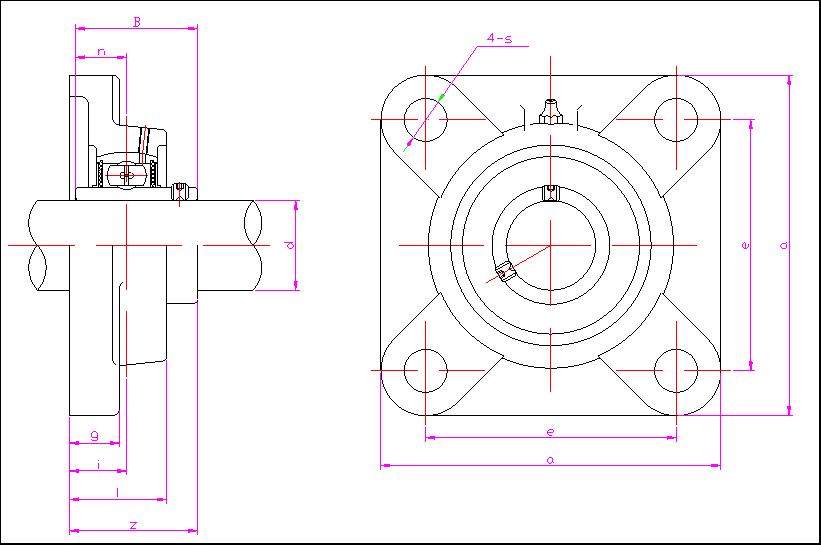

Unit No. Dimensionsmmin. Bolt Sizemmin. Bearings No. Housing No. Weight(kg)
d a e i g I S Z B n
SS-UCF201 12 86 64 15 12 25.5 12 33.3 31 12.7 M10 SS-UC201 SF204 0.60
SS-UCF201-8 1/2 3-3/8 2-33/64 19/32 15/32 1 15/32 1-5/16 1.2205 0.500 3/8 SS-UC201-8 0.59
SS-UCF202 15 86 64 15 12 25.5 12 33.3 31 12.7 M10 SS-UC202 SF204 0.59
SS-UCF202-9 9/16                     SS-UC202-9 0.59
SS-UCF202-10 5/8 3-3/8 2-33/64 19/32 15/32 1 15/32 1-5/16 1.2205 0.500 3/8 SS-UC202-10 0.59
SS-UCF203 17 86 64 15 12 25.5 12 33.3 31 12.7 M10 SS-UC203 SF204 0.58
SS-UCF203-11 11/16 3-3/8 2-33/64 19/32 15/32 1 15/32 1-5/16 1.2205 0.500 3/8 SS-UC203-11 0.57
SS-UCF204 20 86 64 15 12 25.5 12 33.3 31 12.7 M10 SS-UC204 SF204 0.56
SS-UCF204-12 3/4 3-3/8 2-33/64 19/32 15/32 1 15/32 1-5/16 1.2205 0.500 3/8 SS-UC204-12 0.56
SS-UCF205 25 95 70 16 14 27 12 35.8 34.1 14.3 M10 SS-UC205 SF205 0.80
SS-UCF205-13 13/16                     SS-UC205-13 0.84
SS-UCF205-14 7/8                     SS-UC205-14 0.83
SS-UCF205-15 15/16                     SS-UC205-15 0.81
SS-UCF205-16 1 3-3/4 2-3/4 5/8 35/64 1-1/16 15/32 1-13/32 1.3425 0.563 3/8 SS-UC205-16 0.80
SS-UCF206 30 108 83 18 14 31 12 40.2 38.1 15.9 M10 SS-UC206 SF206 1.12
SS-UCF206-17 1-1/16                     SS-UC206-17 1.15
SS-UCF206-18 1-1/8                     SS-UC206-18 1.14
SS-UCF206-19 1-3/16                     SS-UC206-19 1.12
SS-UCF206-20 1-1/4 4-1/4 3-17/64 45/64 35/64 1-7/32 15/32 1-19/32 1.500 0.626 3/8 SS-UC206-20 1.11
SS-UCF207 35 117 92 19 16 34 14 44.4 42.9 17.5 M12 SS-UC207 SF207 1.46
SS-UCF207-20 1-1/4                     SS-UC207-20 1.52
SS-UCF207-21 1-5/16                     SS-UC207-21 1.49
SS-UCF207-22 1-3/8                     SS-UC207-22 1.46
SS-UCF207-23 1-7/16 4-39/64 3-5/8 3/4 5/8 1-11/32 35/64 1-3/4 1.6890 0.689 7/16 SS-UC207-23 1.43
SS-UCF208 40 130 102 21 16 36 16 51.2 49.2 19 M14 SS-UC208 SF208 1.84
SS-UCF208-24 1-1/2                     SS-UC208-24 1.88
SS-UCF208-25 1-9/16 5-1/8 4-1/64 53/64 5/8 1-27/64 5/8 2-1/64 1.9370 0.748 1/2 SS-UC208-25 1.85
SS-UCF209 45 137 105 22 18 38 16 52.2 49.2 19 M14 SS-UC209 SF209 2.15
SS-UCF209-26 1-5/8                     SS-UC209-26 2.25
SS-UCF209-27 1-11/16                     SS-UC209-27 2.21
SS-UCF209-28 1-3/4 5-13/32 4-9/64 55/64 23/32 1-1/2 5/8 2-1/16 1.9370 0.748 1/2 SS-UC209-28 2.17
SS-UCF210 50 143 111 22 18 40 16 54.6 51.6 19 M14 SS-UC210 SF210 2.42
SS-UCF210-29 1-13/16                     SS-UC210-29 2.54
SS-UCF210-30 1-7/8                     SS-UC210-30 2.49
SS-UCF210-31 1-15/16                     SS-UC210-31 2.44
SS-UCF210-32 2 5-5/8 4-3/8 55/64 23/32 1-37/64 5/8 2-5/32 2.0315 0.748 1/2 SS-UC210-32 2.40
SS-UCF211 55 162 130 25 20 43 19 58.4 55.6 22.2 M164 SS-UC211 SF211 3.31
SS-UCF211-32 2                     SS-UC211-32 3.46
SS-UCF211-33 2-1/16                     SS-UC211-33 3.4
SS-UCF211-34 2-1/8                     SS-UC211-34 3.35
SS-UCF211-35 2-3/16 6-3/8 5-1/8 63/64 25/32 1-11/16 3/4 1-5/16 2.1890 0.874 1/2 SS-UC211-35 3.29
SS-UCF212 60 175 143 29 20 48 19 68.7 65.1 25.4 M16 SS-UC212 SF212 4.28
SS-UCF212-36 2-1/4                     SS-UC212-36 4.41
SS-UCF212-37 2-5/16                     SS-UC212-37 4.33
SS-UCF212-38 2-3/8                     SS-UC212-38 4.26
SS-UCF212-39 2-7/16 6-57/64 5-5/8 1-9/64 25/32 1-7/8 3/4 2-45/64 2.5630 1.000 5/8 SS-UC212-39 4.19
SS-UCF213 65 187 149 30 22 50 19 69.7 65.1 25.4 M16 SS-UC213 SF213 4.99
SS-UCF213-40 2-1/2                     SS-UC213-40 5.08
SS-UCF213-41 2-9/16 7-23/64 5-55/64 1-3/16 55/64 1-31/32 3/4 2-3/4 2.5630 1.000 5/8 SS-UC213-41 4.99
SS-UCF214 70 193 152 31 22 54 19 75.4 74.6 30.2 M16 SS-UC214 SF214 5.85
SS-UCF214-42 2-5/8                     SS-UC214-42 6.06
SS-UCF214-43 2-11/16                     SS-UC214-43 5.96
SS-UCF214-44 2-3/4 7-19/32 5-63/64 1-7/32 55/64 2-1/8 3/4 2-31/32 2.9370 1.189 5/8 SS-UC214-44 5.86
SS-UCF215 75 200 159 34 22 56 19 78.5 77.8 33.3 M16 SS-UC215 SF215 6.91
SS-UCF215-45 2-13/16                     SS-UC215-45 7.16
SS-UCF215-46 2-7/8                     SS-UC215-46 7.05
SS-UCF215-47 2-15/16                     SS-UC215-47 6.94
SS-UCF215-48 3 7-7/8 6-17/64 1-11/32 55/64 2-7/32 3/4 3-3/32 3.063. 1.311 5/8 SS-UC215-48 6.82
