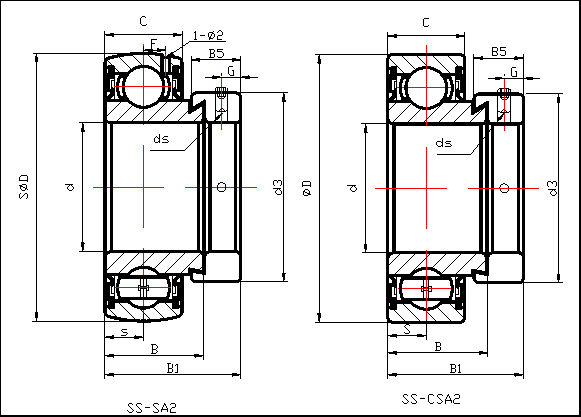

SSA Series



Bearing Bore Diam Dimensions(in)or(mm)     Dynamic load Static load Weight
            ratings ratings
NO. (in) (mm) D B B1 C S S1 G ds B5 d3 N N (kg)
SSA201-8 SS-CSA201-8 1/2   1.5748 0.7520 1.126 0.4724 0.2362 0.6300 0.1969 1/4-28 0.531 1.122 9600 4600 0.12
SSA201 SS-CSA201   12 0.12
SSA202-9 SS-CSA202-9 9/16   0.10
SSA202-10 SS-CSA202-10 5/8   0.10
SSA202 SS-CSA202   15 40 19.1 28.6 12 6 16 5 M6*1 13.5 28.5 0.10
SSA203-11 SS-CSA203-11 11/16   0.09
SSA203 SS-CSA203   17 0.09
SSA204-12 SS-CSA204-12 3/4   1.850 0.8465 1.220 0.5512 0.2760 0.7090 0.1969 1/4-28 0.531 1.311 12800 6650 0.16
SSA204 SS-CSA204   20 47 21.5 31 14 7 18 5 M6*1 13.5 33.3 0.15
SSA205-14 SS-CSA205-14 7/8   2.0472 0.8465 1.220 0.5906 0.2950 0.768 0.1969 1/4-28 0.531 1.496 14000 7850 0.22
SSA205-15 SS-CSA205-15 15/16   0.21
SSA205-16 SS-CSA205-16 1   52 21.5 31 15 7.5 19.5 5 M6*1 13.5 38.0 0.19
SSA205 SS-CSA205   25 0.20
SSA206-17 SS-CSA206-17 1-1/16   2.4409 0.9370 1.406 0.6299 0.3150 0.8661 0.1969 1/4-28 0.626 1.7125 19500 11300 0.32
SSA206-18 SS-CSA206-18 1-1/8   0.31
SSA206-19 SS-CSA206-19 1-3/16   62 23.8 35.7 16 8 22 5 M6*1 15.9 43.5 0.30
SSA206 SS-CSA206   30 0.30
SSA207-20 SS-CSA207-20 1-1/4   2.8346 1.0000 1.531 0.6693 0.3346 0.9252 0.2756 5/16-24 0.689 2.0866 25700 15300 0.46
SSA207-21 SS-CSA207-21 1-5/16   0.43
SSA207-22 SS-CSA207-22 1-3/8   0.42
SSA207-23 SS-CSA207-23 1-7/16   72 25.4 38.9 17 8.5 23.5 7 M8*1.0 17.5 53.0 0.41
SSA207 SS-CSA207   35 0.42
SSA208-24 SS-CSA208-24 1-1/2   3.1496 1.1890 1.721 0.7087 0.3543 0.9843 0.3150 5/16-24 0.720 2.2834 29500 18100 0.60
SSA208-25 SS-CSA208-25 1-9/16   0.63
SSA208 SS-CSA208   40 80 30.2 43.7 18 9 25 8 M8*1.0 18.3 58.0 .061
SSA209-26 SS-CSA209-26 1-5/8   3.3465 1.1890 1.721 0.7480 0.3740 1.2480 0.3150 5/16-24 0.720 2.500 31600 20600 0.76
SSA209-27 SS-CSA209-27 1-11/16
SSA209-28 SS-SA209-28 1- 3/4   85 30.2 43.7 19 9.5 31.7 8 M8*1.0 18.3 63.5
SSA209 SS-CSA209   45
SSA210-29 SS-CSA210-29 1-13/16   3.5433 1.1890 1.721 0.7874 0.3937 1.3189 0.3937 3/8-24 0.720 2.696 35000 23200 0.91
SSA210-30 SS-CSA210-30 1-7/8
SSA210-31 SS-CSA210-31 1-15/16
SSA210-32 SS-CSA210-32 2   90 30.2 43.7 20 10 33.5 10 M10*1.25 18.3 68.5
SSA210 SS-CSA210   50
SSA211-32 SS-CSA211-32 2   3.9370 1.2795 1.906 0.8268 0.4134 1.3701 0.3937 3/8-24 0.815 3.000 43500 29200 1.26
SSA211-33 SS-CSA211-33 2-1/16
SSA211-34 SS-CSA211-34 2-1/8
SSA211-35 SS-CSA211-35 2-3/16   100 32.5 48.4 21 10.5 34.8 10 M10*1.25 20.7 76.2
SSA211 SS-CSA211   55
SSA212-36 SS-CSA212-36 2-1/4   4.3307 1.4606 2.091 0.8661 0.4331 1.6811 0.3937 3/8-24 0.878 3.2677 47700 32900 1.70
SSA212-37 SS-CSA212-37 2-5/16
SSA212-38 SS-CSA212-38 2-3/8
SSA212-39 SS-CSA212-39 2-7/16   110 37.1 53.1 22 11 42.7 10 M10*1.25 22.3 83.0
SSA212 SS-CSA212   60
